Shad-o-Scan

High-Speed Real-Time X-Ray Imaging

Shad-o-Scan detectors provide high speed imaging and have among the highest dynamic range in the industry, featuring state-of-the-art 14-bit digitization which allows for X-ray imaging at diminishingly low dose levels. Our unique industrial-grade X-ray conversion stack effectively eliminates imaging artifacts associated with image lag and gain hysteresis.

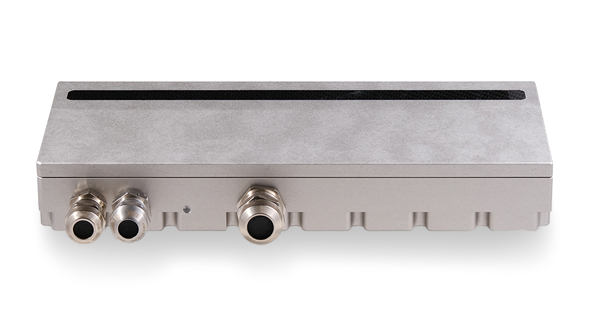

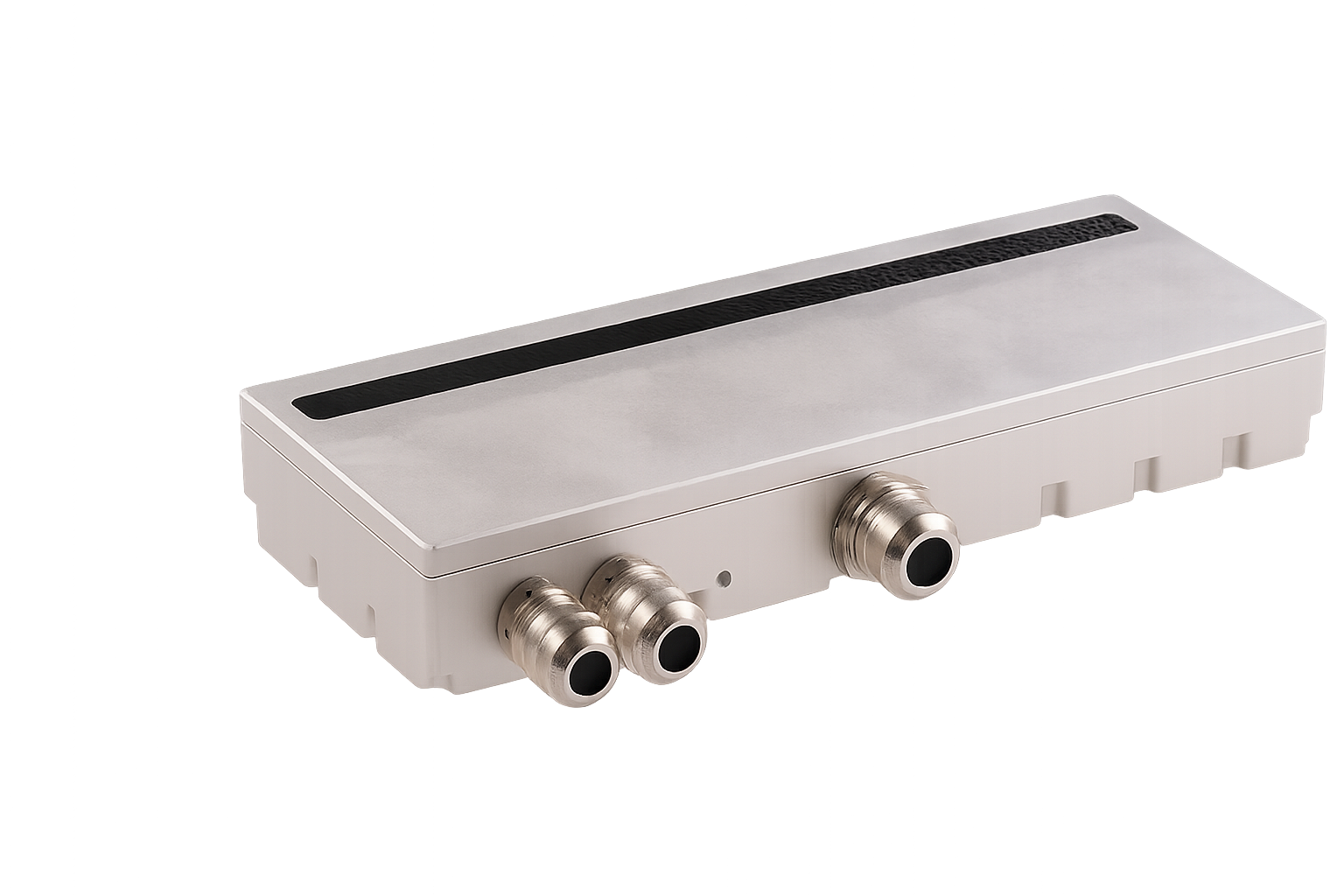

Shad-o-scan

Durable and Powerful

  • Shad-o-Scan is reliable and power-efficient, satisfying a wide range of imaging requirements with built-in flexibility on controlling the imaging mode and configuring the X-ray sensor.
  • Requiring only 20 Watts at full speed operation, the Shad-o-Scan detector has no need for external active cooling, reducing cost and maintenance concerns on the system level.
  • The Shad-o-Scan detectors contain internal shielding to protect the sensor and camera electronics from x-ray radiation.
  • The cameras are optimized for the 10-160 kV energy range, but may be used with x-ray energies as high as 225 kV.

Digital TDI Functionality

Digital Time Delay Integration (D-TDI) technology offers the possibility to increase the sensitivity and enhance the contrast resolution of the Shad-o-Scan product for industrial demanding applications.


DOWNLOAD DATASHEET HERE:

Technical Specifications Downloadable PDF

Model Finder

Model Resolution Camera Interface Pixel Size Active Area Frame Rate
SB1661 3072 x 64 5 Gigabit Ethernet 99 µm 226 x 170 mm 44 fps Request Info
SB1671 4608 x 64 5 Gigabit Ethernet 99 µm 226 x 170 mm 44 fps Request Info
SB1681 1536 x 64 5 Gigabit Ethernet 99 µm 299 x 299 mm 55 fps Request Info

PLEASE CONTACT US FOR MORE INFORMATION

We are always happy to help or advise on your specific x-ray requirements—from general to technical questions we are happy to help.
