• Remote RadEye HR

    X-ray Imaging in the Least Accessible Spaces

    The RadEye XR is an ultra-high resolution industrial dynamic detector. The RadEye XR detectors are designed to address the most demanding needs of Industrial inspection, biomedical and scientific applications.

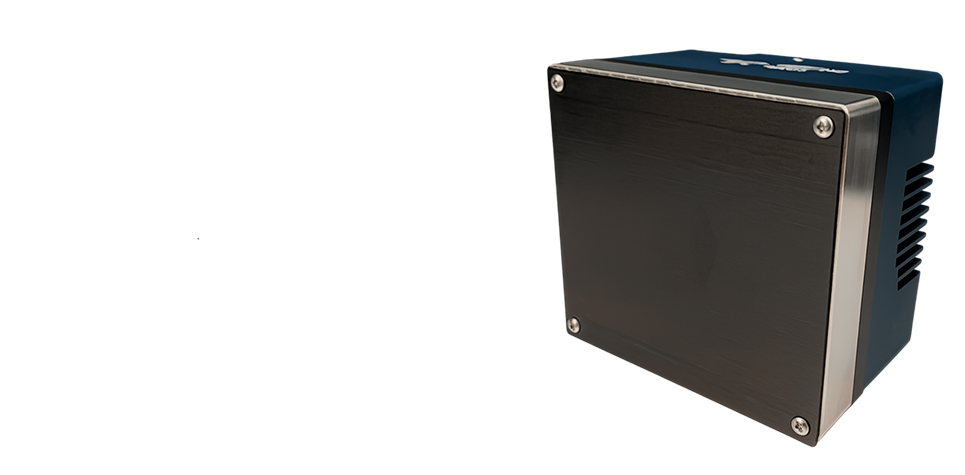

RadEye XR

X-ray Imaging in the Least Accessible Spaces

The RadEye XR is an ultra-high resolution industrial dynamic detector. The RadEye XR detectors are designed to address the most demanding needs of Industrial inspection, biomedical and scientific applications.

The CameraLink HS™ interface allows for easy access to feature such as adjusting the frame rate, single or multiple frames acquisition and control of advanced timing modes. Each detector ships with user-friendly software tools for stand-alone operation or easy integration with your application software.


Key Features

• Best in class image quality
• Ultra High Resolution
• 6μm pixel pitch
• 16 bit output
• CLHS and GenICam compliant

Applications

• Industrial inspection
• Biomedical
• Scientific

DOWNLOAD DATASHEET HERE:

Technical Specifications Downloadable PDF

Specifications

Model Resolution Camera Interface Active Area Pixel Size Frame Rate
RadEye XR 10720 x 8064 CLHS and GenICam 64.3 x 48.4 mm 6 µm 16 fps Request Info
