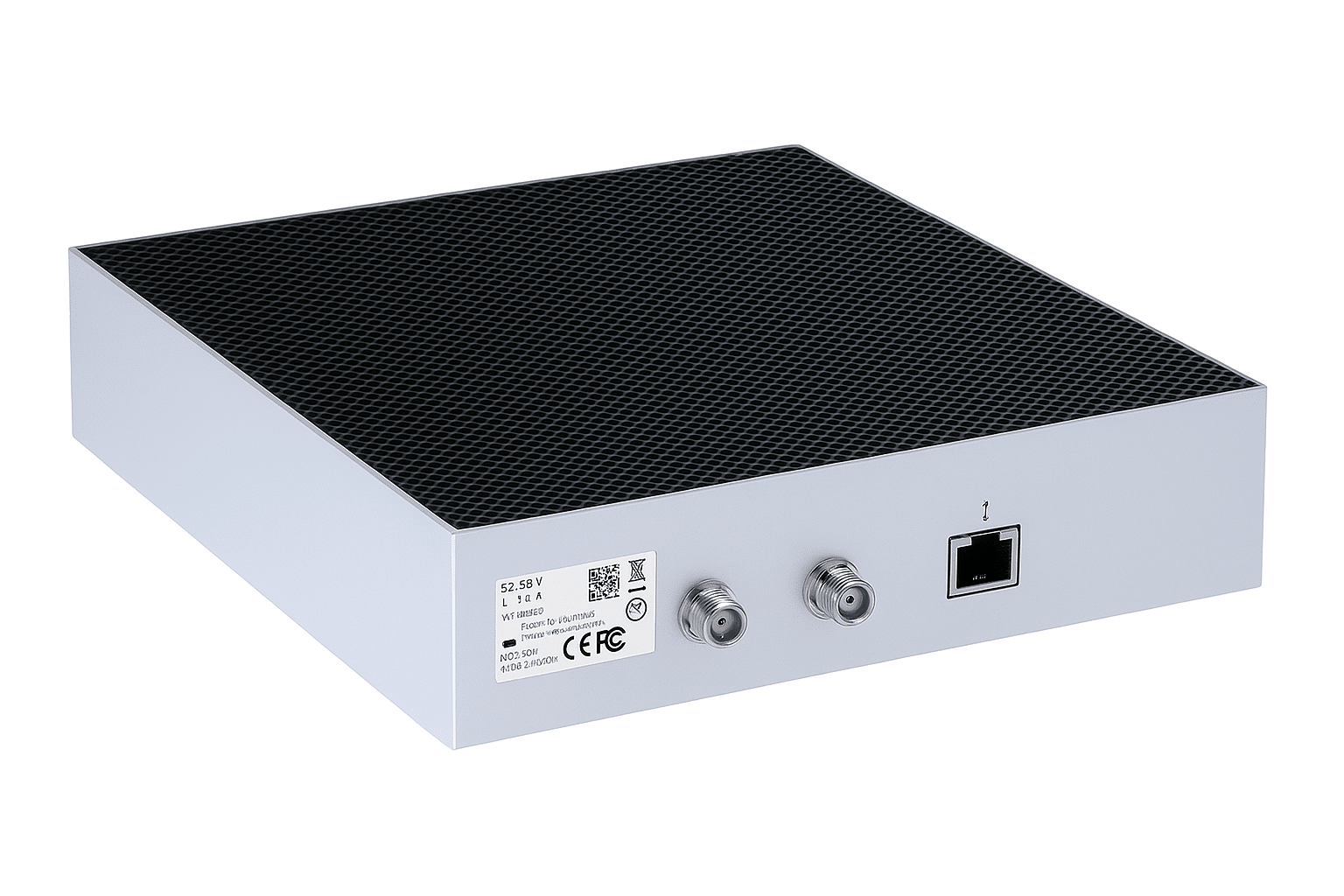

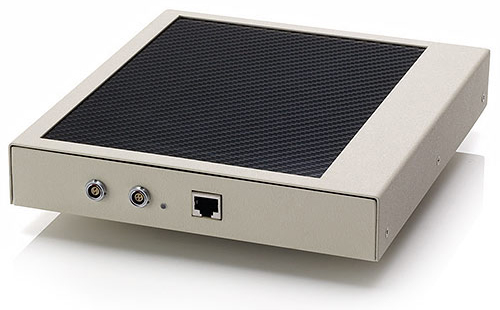

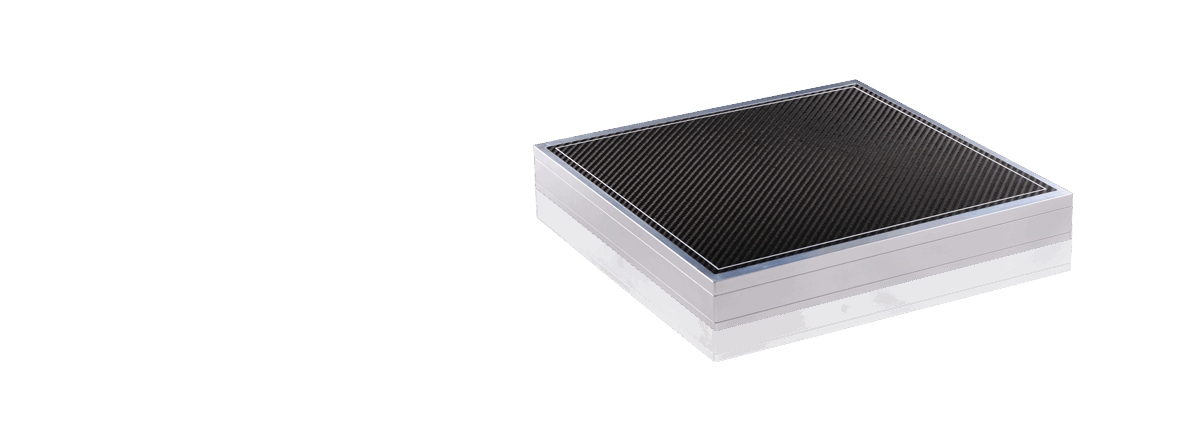

Rad-Xcam

High Speed IGZO Flat X-Ray Detector for Industrial Applications

From the worldwide leader in high performance CMOS X-ray imaging comes a new product line of high-performance dynamic detectors, based on our innovative radiation-hard IGZO sensor technology. The Rad-Xcam detectors are designed to address the demanding needs of dynamic industrial applications like industrial x-ray or computed tomography, while providing compelling integration cost advantages



Feature Highlights

  • Industry leading proprietary IGZO-TFT sensor technology
  • Closer to CMOS performance at lower cost
  • Unbeaten 2D and 3D performance
  • Combination of high speed (fps) and high image quality at low dose performance
  • Temperature stability

DOWNLOAD DATASHEET HERE:

Technical Specifications Downloadable PDF

Model Finder

Model Resolution Camera Interface Active Area Pixel Size Frame Rate
Rad-Xcam 1717
RT1763
170 x 170 mm NBASE-T Ethernet 1536 x 1536 mm 110.5 µm 44 fps Request Info
Rad-Xcam 1723
RT1753
226 x 170 mm NBASE-T Ethernet 2048 x 1536 mm 110.5 µm 44 fps Request Info
Rad-Xcam 3030
RT1743
299 x 299 mm NBASE-T Ethernet 2048 x 2048 mm 146 µm 55 fps Request Info

PLEASE CONTACT US FOR MORE INFORMATION

We are always happy to help or advise on your specific x-ray requirements—from general to technical questions we are happy to help.
