• Rad-icon

    Large Area CMOS X-Ray

    The Rad-icon product family leverages our advanced CMOS image sensing technology, which enables the delivery of low-dose x-ray images and yields higher image quality than aSi flat panels and image intensifier devices. Rad-icon cameras are capable of frame rates up to 30 fps, and communicate via CameraLink data cable or a standard Cat 6e over lengths up to 100 m.

  • Rad-icon

    Superior Large-Area Non-Destructive Testing

Rad-icon

Great Performance, Ease of Use

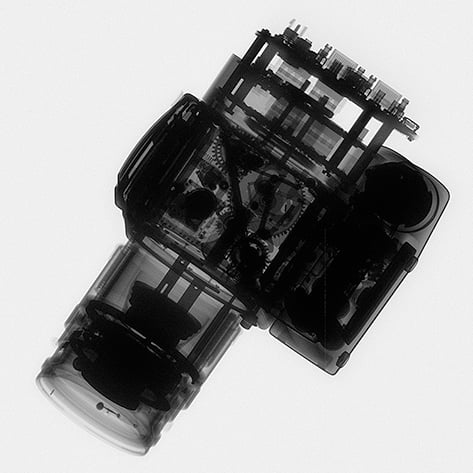

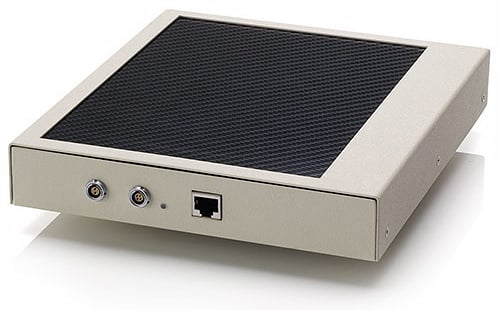

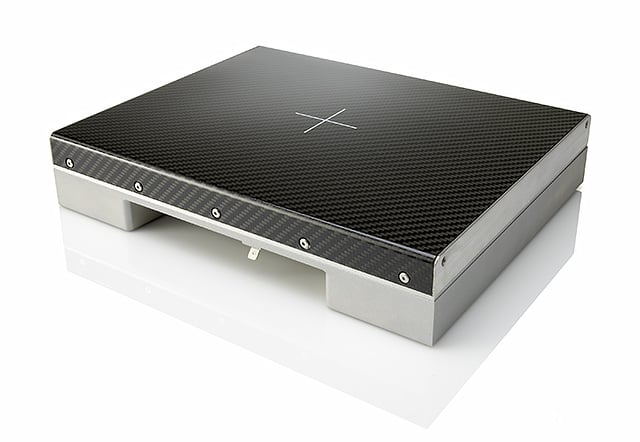

Teledyne DALSA’s Rad-icon product family of large-area digital x-ray cameras offers users a high-speed, high-performance x-ray imaging detector with a fast, reliable PC interface (either GigE or CameraLink) for easy integration.


Intuitive, Powerful Software

Each Rad-icon ships with user-friendly software tools for stand-alone operation or easy integration with your application software.

Features

  • Large active area: up to 30 × 30 cm
  • 5 or 10 lp/mm resolution (99 or 49.5 µm pixels)
  • Gigabit Ethernet or CameraLink interface
  • Energy range from 10 to 225 kV
  • Ready-to-run software and drivers


Applications

  • Nondestructive testing
  • Automotive inspection
  • Weld inspection
  • Industrial computed tomography (CT)

Superior Large-Area Non-Destructive Testing

Cutting-edge Technology Delivers Cutting-edge Results

The Rad-icon product family leverages our advanced CMOS image sensing technology, which enables the delivery of low-dose x-ray images and yields higher image quality than aSi flat panels and image intensifier devices. Rad-icon cameras are capable of frame rates up to 30 fps, and communicate via CameraLink data cable or a standard Cat 6e over lengths up to 100 m.


Flexible and Adjustable for Varied Applications

Rad-icon detectors are available with different Gd2O2S (Gadox) scintillator options to address a range of resolution and sensitivity requirements. The camera interface allows easy access to features such as adjusting the frame rate, single and multiple frame acquisitions, and control of advanced timing modes.


DOWNLOAD DATASHEET HERE:

Technical Specifications Downloadable PDF

Model Finder

Product Active Area Resolution Camera Interface Pixel Size Frame Rate
Rad-icon 0720
SB1739
68 x 204 mm 1548 x 2064 GigE Vision 99 µm 66 fps
Rad-icon 0723HS
SB1806
64 x 228 mm 1245 x 4608 GigE Vision 49.5 µm 50 fps
Rad-icon 1520
SB1504
204 x 153 mm 1548 x 2064 GigE Vision 99 µm 16 fps
Rad-icon 1523HS
SB1808
146 x 228 mm 2930 x 4608 GigE Vision 49.5 µm 22 fps
Rad-icon 2022
SB1533
204 x 221 mm 2064 x 2236 Camera Link 99 µm 30 fps
Rad-icon 2329HS
SB1794
228 x 291 mm 4608 x 5860 GigE Vision 49.5µm 22 fps
Rad-icon 3030HS
SB1785
306 x 306 mm 3076 x 3096 GigE Vision 99 µm 50 fps

PLEASE CONTACT US FOR MORE INFORMATION

We are always happy to help or advise on your specific x-ray requirements—from general to technical questions we are happy to help.
